MDR-3200-COD COD在线分析仪

MDR-3200-COD COD在线分析仪具有反应快速、测量精准、安装方便、无需试剂等特点。采用两路光源，一路紫外光用于测量水中COD含量，一路参比光用于测量水体浊度，另外通过特定算法对光路衰减进行补偿并可在一定程度上消除颗粒状悬浮物杂质的干扰，从而实现更加稳定可靠的测量。

    MDR-3200-COD COD online analyzer has the characteristics of fast reaction, accurate measurement, easy installation and no reagents. Two light sources are used, one ultraviolet light is used to measure COD content in water, and one reference light is used to measure turbidity in water. In addition, a specific algorithm is used to compensate the attenuation of optical path and eliminate the interference of particulate suspended impurities to a certain extent, so as to achieve more stable and reliable measurement.

MDR-3200-COD COD在线分析仪产品特点/COD online analyzer product features：
    1、无需试剂，无污染，经济环保/No reagents, no pollution, economic and environmental protection
    2、尺寸小巧，安装更为便捷，可在线不间断进行水质监测/Small size, more convenient installation, online uninterrupted water quality monitoring
    3、可测量COD、浊度及温度等参数/COD, turbidity and temperature can be measured
    4、低功耗设计，抗干扰设计/Low power design, anti-interference design
    5、自动对浊度干扰进行补偿/Automatically compensates for turbidity interference
    6、带有清洁刷，可防止生物附着/Comes with a cleaning brush to prevent biological attachment
    7、漂移小，反应快速，测量更精准/Small drift, fast response, more accurate measurement
    8、即使长期监测依然具有极佳的稳定性/Excellent stability/even for long-term monitoring
    9、免维护，使用周期长，使用成本低/Maintenance-free, long service cycle, low cost
    10、数字传感器，RS-485接口，Modbus/RTU协议/Digital sensor, RS-485 interface, Modbus/RTU protocol

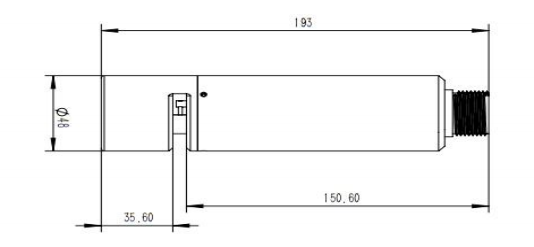

MDR-3200-COD COD在线分析仪安装/COD online analyzer installation：

    线缆为4芯双绞屏蔽线，线序定义/The cable is a 4-core shielded twisted-pair cable. The sequence is defined as follows:
    1、红色线—电源线（12～24VDC）/Red Cable - Power cable (12 ~ 24VDC)
    2、黑色线—地线（GND）/Black Wire - Ground (GND)
    3、蓝色线—485A/Black Wire - Ground (GND)
    4、白色线—485B/White wire - 485B
    5、绿色线—屏蔽线/Green cable - Shielded cable
    通电前应仔细检查接线顺序，避免因接线错误而造成不必要的损失/The wiring sequence should be carefully checked before power-on to avoid unnecessary losses caused by wiring errors

MDR-3200-COD COD在线分析仪技术参数/COD online analyzer technical parameters：
测量范围/Measuring range：0～100mg/L

测量精度/Measurement accuracy：±5%F.S

分辨率/Resolution：0.1mg/L

工作条件/Working condition：0~50℃；＜0.2MPa

校准方式/Calibration mode：两点校准（Two-point calibration）

供电电压/Supply voltage：DC 12~24V

输出信号/Output signal：RS-485,MODBUS/RTU

防护等级/Class of protection：IP68

线缆长度/Cable length：10m，可定制

外壳材料/Housing material：POM，304不锈钢

传感器接头为M16-4芯防水接头公头
