氢混合气配气系统是一种用于精确配制氢气与其他气体(如氮气、氧气等)混合比例的关键装置,主要由气体储存单元、压力调节器、流量控制器、混合腔及安全监测模块构成。其通过高精度传感器和自动控制技术,实时调节气体流量与压力,确保混合比例稳定可靠,同时配备防泄漏、过压保护等安全机制,广泛应用于燃料电池测试、化工生产及科研实验等领域,为氢能应用提供安全可控的气源保障。
Hydrogen mixture distribution system is a key device used to accurately prepare the mixture ratio of hydrogen and other gases (such as nitrogen, oxygen, etc.), which is mainly composed of gas storage unit, pressure regulator, flow controller, mixing chamber and safety monitoring module. Through high-precision sensors and automatic control technology, it can adjust gas flow and pressure in real time to ensure that the mixing ratio is stable and reliable. At the same time, it is equipped with safety mechanisms such as leakage prevention and overpressure protection. It is widely used in fuel cell testing, chemical production and scientific research experiments and other fields to provide safe and controllable gas source protection for hydrogen energy applications.

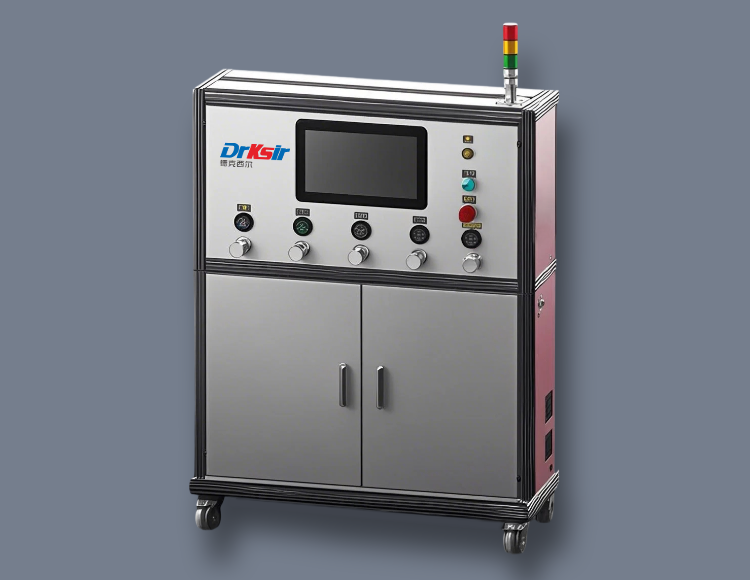

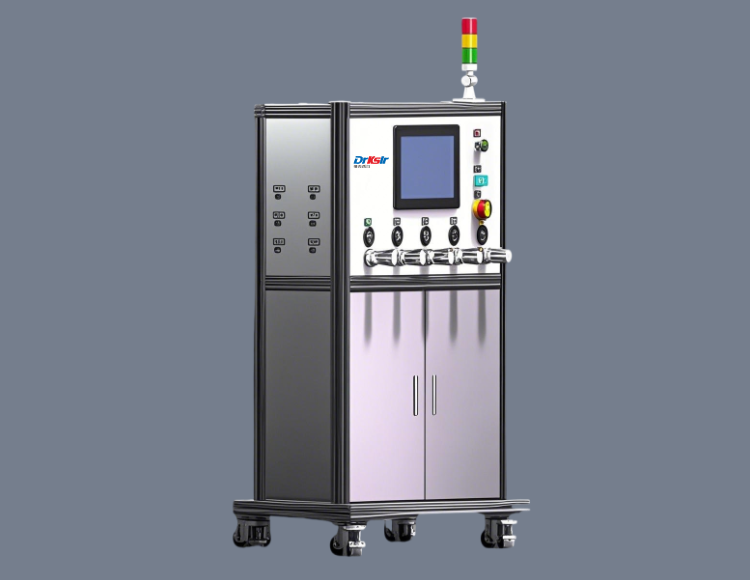

MDR-3000-HPQ 氢混合气配气系统设备功能及特点/Functions and characteristics of hydrogen mixture distribution system equipment:
本设备使用流动法用来配置一定浓度的氢气,可根据用户需求选择不同模式:氢空模式、氢氮模式、氢氩模式、标(含量为 1%氢气)空模式。设备带有温湿度和压力监测功能,采用高精度不同量程七星华创质量控制流量计保证配气精度,设备配有单板电脑配气数据可以记录,具有表格导出、操作界面简单特点。
This equipment uses the flow method to configure a certain concentration of hydrogen. Different modes can be selected according to user requirements: hydrogen air mode, hydrogen nitrogen mode, hydrogen argon mode, standard (1% hydrogen) air mode. Equipment with temperature and humidity and pressure monitoring function, using high precision different range of seven star quality control flowmeter to ensure the accuracy of the gas distribution, equipment equipped with a single board computer gas distribution data can be recorded, with a table export, simple operation interface characteristics.
MDR-3000-HPQ 氢混合气配气系统使用范围及注意事项/Functions and characteristics of hydrogen mixture distribution system equipment:
(1)使用环境要求/Use environment requirements
1.电源电压/voltage:220V 50Hz
2.功率/Power:<200W
3.使用环境湿度范围/humidity range:≤75%H无凝露
4.使用环境温度范围/temperature range:5℃~45℃
(2)注意事项/Precautions
1.入口处气源压力:压缩空气不能超过 0.75Mpa,其余氩气、氮气、氢气和标气不超过 0.60Mpa/Inlet air source pressure: compressed air shall not exceed 0.75Mpa, and other argon, nitrogen, hydrogen and standard gas shall not exceed 0.60Mpa.
2.排气口需连接至室外通风处/Connect the exhaust port to an outdoor ventilation area
3.溢流阀调节时参照压力传感器压力一般为100-200Kpa(0.10-0.20Mpa)/When the relief valve is adjusted, the pressure is generally 100-200Kpa(0.10-0.20Mpa) with reference to the pressure sensor
MDR-3000-HPQ 氢混合气配气系统设备组成及结构/Equipment composition and structure of hydrogen mixture distribution system:

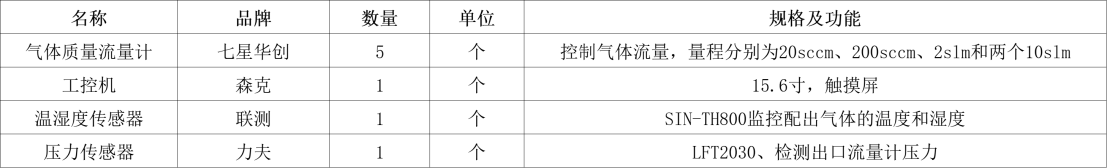

(1)主要部件及功能介绍/Main components and functions are introduced

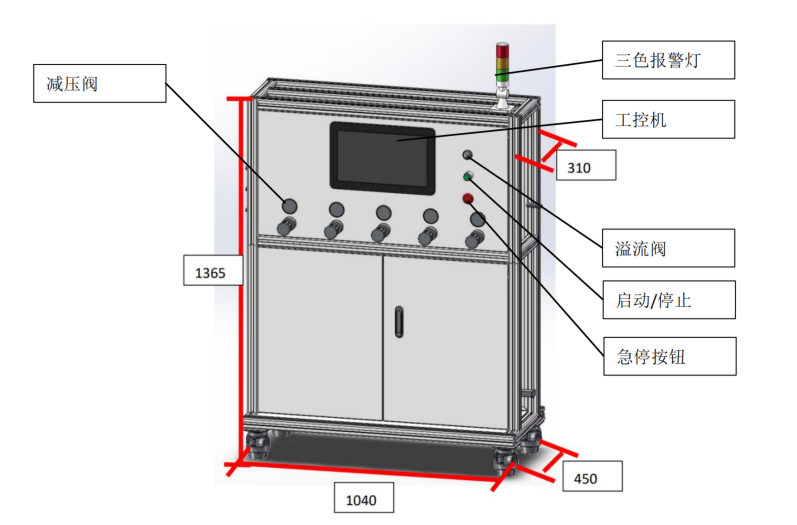

(2)设备外观及标识/Device appearance and identification

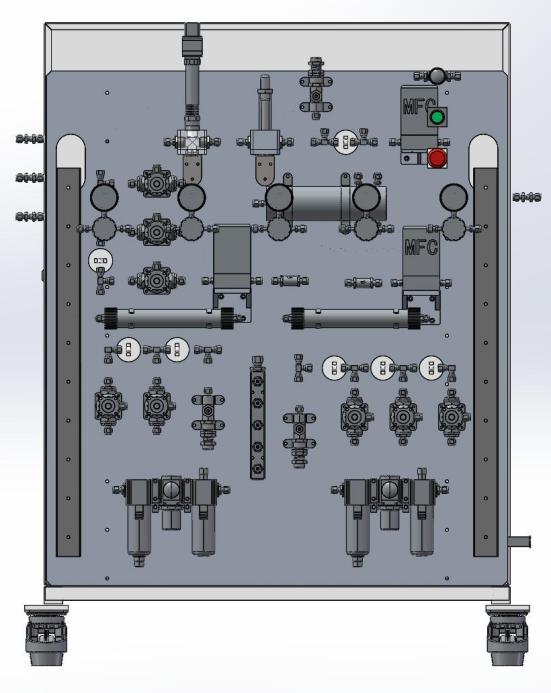

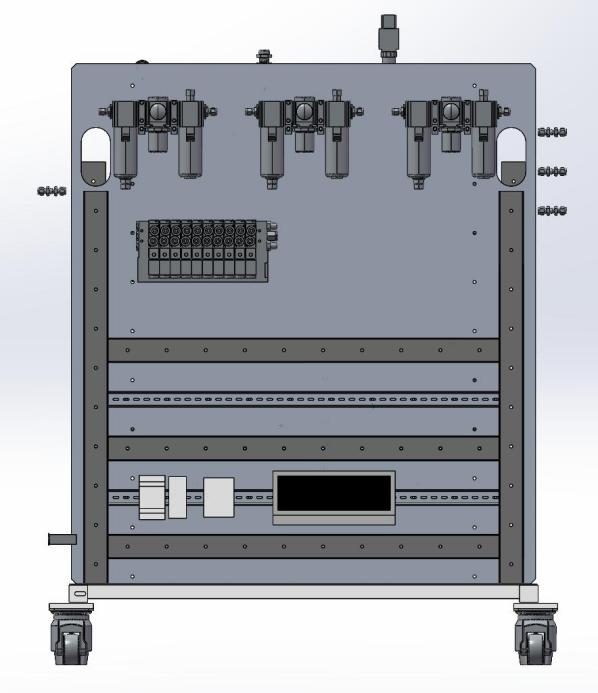

(3)设备结构示意图/Equipment structure diagram

|
|
气路/Gas path | 电路/circuit |
