MDR-TO-05 厕位状态智能监测终端

         产品简介/Product introduction

        厕位状态监测终端安装在厕所门上，实时采集厕位占用状态,并将采集到的状态信息通过无线网络发送至监控中心，监控中心的上位机软件对数据进行解析处理。该终端有ZigBee、LoRaWAN、NB-IOT三种无线通讯方式供选择。终端使用电池供电，具有安装方便、电池寿命长、检测准确率高，工作稳定等特点。

        The toilet status monitoring terminal is installed on the toilet door, collects the toilet status in real time, and sends the collected status information to the monitoring center through the wireless network, and the upper computer software of the monitoring center analyzes and processes the data. The terminal has ZigBee, LoRaWAN, NB-IOT three wireless communication methods to choose from. The terminal uses battery power supply, with easy installation, long battery life, high detection accuracy, stable work and so on.

        工作原理/Working principle

        厕位状态监测终端包含两部分：锁和终端。锁内含有磁性元件，而终端内含有磁感应传感器，所以，厕位状态监测终端可以实时感知厕所门的开/关状态，从而监测厕位占用状态。厕位占用状态信息通过无线网络发送至监控中心，上位机软件对数据进行解析处理。

        The toilet status monitoring terminal consists of two parts: the lock and the terminal. The lock contains a magnetic component, and the terminal contains a magnetic induction sensor, so the toilet status monitoring terminal can sense the open/close status of the toilet door in real time, so as to monitor the toilet status. The information of toilet position occupation status is sent to the monitoring center through wireless network, and the upper computer software analyzes and processes the data.

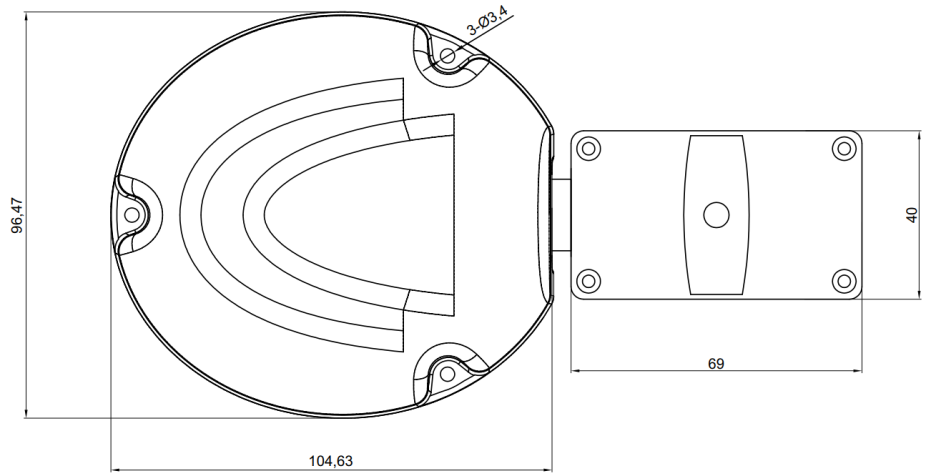

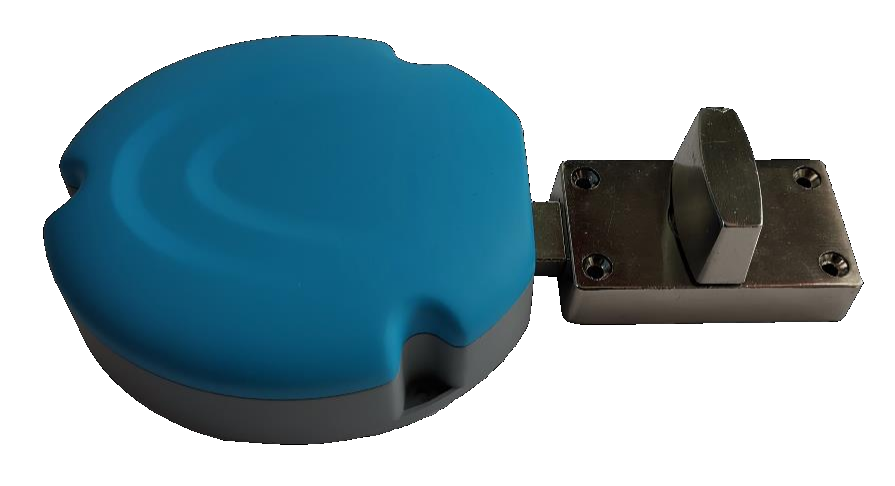

厕位状态智能监测终端的产品外形和尺寸如图：
