MDR-WM-05 井盖状态智能监测终端

        产品简介/Product introduction

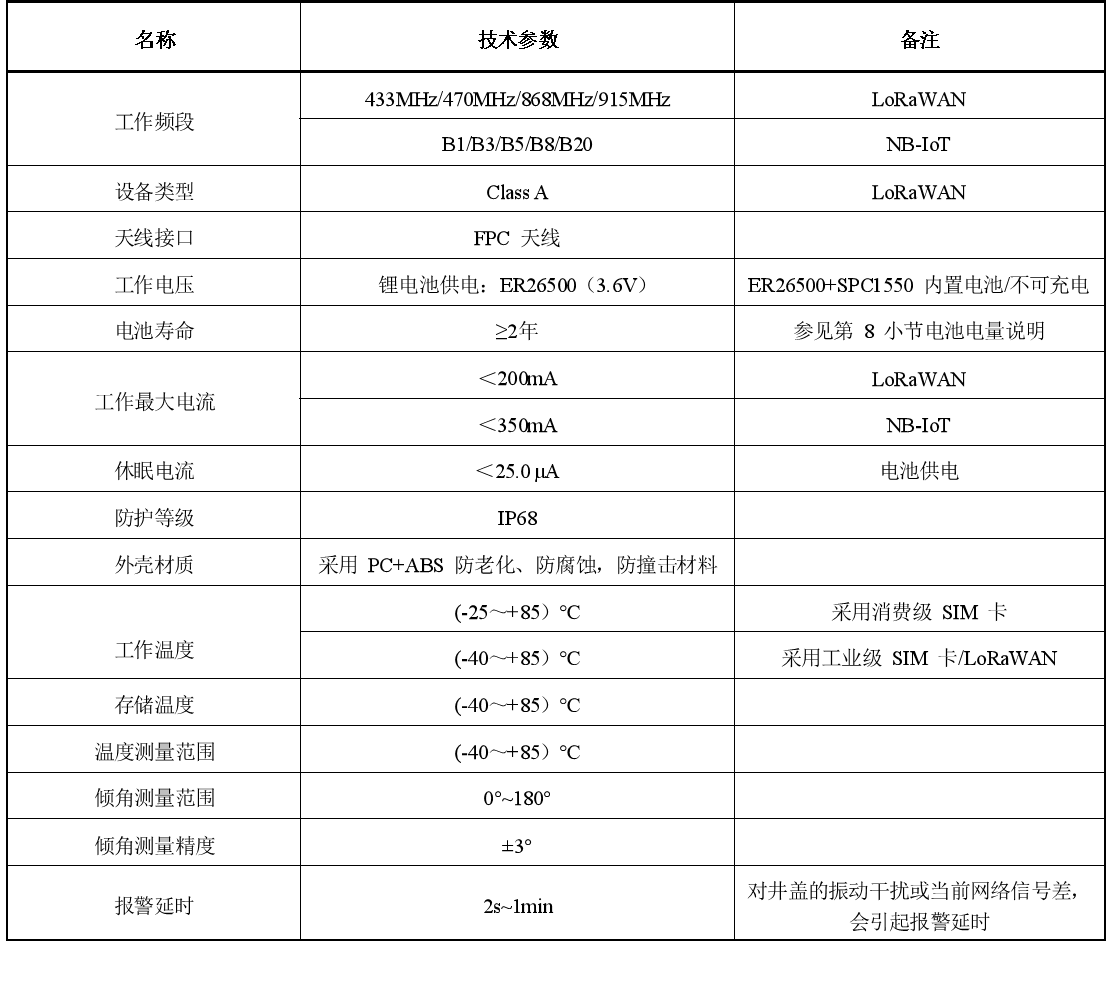

        井盖状态智能监测终端安装于井盖背面，井盖以当前放置状态为正常状态（倾斜小于90°），当井盖发生倾斜并达到触发报警条件时（例如：倾斜角大于10°（倾角可设定）），将触发井盖终端报警并将报警信号通过无线传输方式发送至监控中心，监控中心对数据进行解析并判断警情。该终端产品可提供LoRaWAN、NB-IOT两种无线通讯方式。终端外形见下图，其使用电池供电，具有安装方便、电池寿命长、检测准确率高，工作稳定等特点。

        The manhole cover status intelligent monitoring terminal is installed on the back of the manhole cover, and the manhole cover is normally placed in the current state (tilt less than 90°). When the manhole cover tilts and reaches the trigger alarm condition (for example: The inclination Angle is greater than 10° (the inclination Angle can be set)), which will trigger the alarm of the manhole cover terminal and send the alarm signal to the monitoring center through wireless transmission, and the monitoring center analyzes the data and judges the alarm. The terminal product can provide LoRaWAN, NB-IOT two wireless communication methods. The terminal shape is shown in the figure below. It uses battery power supply and has the characteristics of easy installation, long battery life, high detection accuracy and stable operation.

        工作原理/Working principle

        井盖状态智能监测终端安装在井盖背面，终端通过加速度传感器测量井盖当前的倾斜角度。当该倾角值大于设定的报警值时触发报警（当倾角大于90°时，无条件报警），并通过无线网络将报警信息发送至监控中心。

        终端支持设置定时上报时间间隔和报警角度阈值。非报警状态下，终端以定时上报时间间隔发送上报报文。在报警状态下，终端以立即发送上报报文，当角度恢复正常时，终端也会立即发送报文到平台。报文中的设备状态位用来指示当前的报警状态。设备状态位还可以指示当前的电量状态以及其他状态。

        井盖异动的检测条件是：|井盖当前角度值 – 井盖背景角度值| ＞ 报警角度阈值。该条件满足时，发送报警信息。当倾角大于90°时，无条件报警。

        The intelligent monitoring terminal of the manhole cover condition is installed on the back of the manhole cover, and the terminal measures the current inclination Angle of the manhole cover through the acceleration sensor. When the inclination value is greater than the set alarm value, the alarm is triggered (when the inclination is greater than 90°, unconditional alarm), and the alarm information is sent to the monitoring center through the wireless network.

        The terminal supports setting the periodic reporting interval and alarm Angle threshold. In the non-alarm state, the terminal sends the reported packets at a periodic reporting interval. In the alarm state, the terminal immediately sends the report message, when the Angle returns to normal, the terminal will immediately send the message to the platform. The device status bits in the message indicate the current alarm status. The device status bit can also indicate the current battery status and other states.

        The detection conditions of manhole cover transaction are: | current Angle value of manhole cover - background Angle value of manhole cover | > alarm Angle threshold. When this condition is met, alarm information is sent. When the Angle is greater than 90°, unconditional alarm.

井盖状态智能监测终端的外形及尺寸标注如下：
