MDR-3200-EMF 电磁流量计

MDR-3200-EMF 电磁流量计工作原理/Electromagnetic Flow Meter working principle：

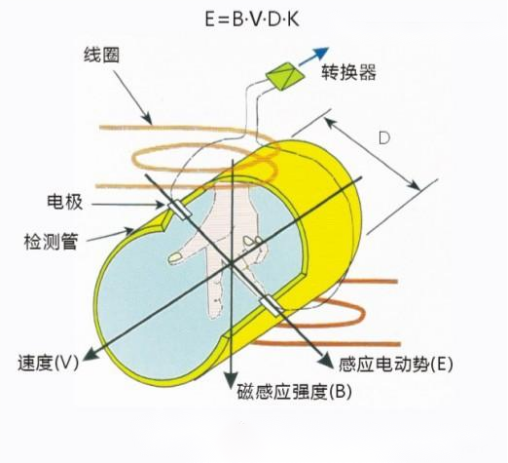

MDR-3200-EMF 电磁流量计的核心原理基于法拉第电磁感应定律。当导电液体通过磁场时，会产生与流速成正比的感应电动势。电磁流量计通过测量这一电动势，即可计算出流体的流量。具体来说，电磁流量计由励磁线圈、测量电极、衬里和传感器等部分组成。励磁线圈产生交变磁场，流体中的导电颗粒在磁场作用下切割磁力线，从而在测量电极之间产生电压信号。通过对电压信号的采集和处理，可以计算出流体的瞬时流量和累积流量。

The core principle of the MDR - 3200 - EMF electromagnetic flowmeter is based on Faraday's law of electromagnetic induction. When a conductive liquid passes through a magnetic field, an induced electromotive force proportional to the flow velocity is generated. The electromagnetic flowmeter calculates the flow rate of the fluid by measuring this electromotive force. Specifically, the electromagnetic flowmeter consists of components such as an excitation coil, measuring electrodes, a liner, and a sensor. The excitation coil generates an alternating magnetic field. The conductive particles in the fluid cut the magnetic field lines under the action of the magnetic field, thus generating a voltage signal between the measuring electrodes. By collecting and processing the voltage signal, the instantaneous flow rate and cumulative flow rate of the fluid can be calculated

MDR-3200-EMF 电磁流量计产品特点/Electromagnetic Flow Meter Features：

1.不受流体密度、粘度、温度、压力和电导率变化的影响，线性测量原理能实现高精度测量/It is not affected by changes in fluid density, viscosity, temperature, pressure, and electrical conductivity. The linear measurement principle enables high - precision measurement.

2.测量管内无阻流及活动部件，压力损失小，因此不会造成额外的能量损失，也不会造成堵塞，节能效果显著,特别适宜液固两相流介质，如污水、泥浆、矿浆、纸浆等的测量/There are no flow - blocking and moving parts inside the measuring tube, resulting in low pressure loss. Therefore, it will not cause additional energy loss or blockage, and has a significant energy - saving effect. It is particularly suitable for measuring liquid - solid two - phase flow media, such as sewage, slurry, ore pulp, paper pulp, etc.

3.安装要求低，前直管段只要求5D,后直管段为3D(D为所选仪表的内直径)/The installation requirements are low. Only a 5D straight - pipe section is required before the meter, and a 3D straight - pipe section is required after the meter (D is the inner diameter of the selected instrument).

4.公称通径DN3-DN3000覆盖范围宽，衬里和电极有多种选择，能满足测量多种导电液体流量的要求/    The nominal diameter ranges from DN3 to DN3000, with a wide coverage. There are various choices of linings and electrodes, which can meet the requirements of measuring the flow of various conductive liquids.

5.具有MODBUS-RS485、HART、GPRS和PROFIBUS等通讯信号输出(选配)/It has communication signal outputs such as MODBUS - RS485, HART, GPRS, and PROFIBUS (optional).

6.转换器采用32位嵌入式微处理器，全数字处理，运算速度快，抗干扰能力强，测量可靠，精确度高，测量范围度可达150:1/The converter adopts a 32 - bit embedded microprocessor for all - digital processing. It has a fast operation speed, strong anti - interference ability, reliable measurement, high accuracy, and a measurement range ratio of up to 150:1.

7.高清晰度背光LCD显示，全汉字菜单操作，使用方便，操作简单，易学易懂/It features a high - definition backlit LCD display with a full - Chinese menu operation. It is convenient to use, easy to operate, and easy to learn and understand.

8.具有电导率测量功能，可以判别传感器是否空管，具有自检与自诊断功能/It has the function of electrical conductivity measurement, which can determine whether the sensor is in an empty - pipe state. It also has self - inspection and self - diagnosis functions.

MDR-3200-EMF 电磁流量计产业应用/Electromagnetic Flow Meter application：

电磁流量计可用来测量封闭管道中导电流体的体积流量。广泛应用于石油、化工、钢铁、治金、给排水、水利灌溉、水处理、环保污水测控、造纸、医药、食品等工农业生产工艺过程中的流量测量和控制/Electromagnetic Flow Metercan be used to measure the volume flow rate of conductive fluids in closed pipelines. They are widely applied in the flow measurement and control during the industrial and agricultural production processes of various fields, such as petroleum, chemical industry, iron and steel, metallurgy, water supply and drainage, water conservancy irrigation, water treatment, environmental sewage monitoring and control, papermaking, medicine, and food.

1.使用环境条件/Operating environmental conditions

环境温度/Ambient temperature：传感器/Sensor-25℃-+60℃; 转换器/Converter-10℃-+60℃

相对湿度/Relative humidity：5%~95%

2.工作条件/Working conditions

流体电导率/Fluid conductivity：大于5μS/cm(自来水、原水的电导率约100~5005μS/cm)/greater than 5μS/cm (The conductivity of tap water and raw water is approximately 100 - 5005μS/cm)

保护等级/Protection level：IP68

环境温度/Ambient temperature：-25℃~60℃

通信方式/Communication mode：RS-232/RS485/4-20mA(可选/optional)
应用场景/Application scenario：主要应用于石油化工、钢铁冶金、给水排水、水利灌溉、水处理、医药、食品等工农业生产工艺过程中的流量测量和控制。
