MDR-3200-TS 浊度在线分析仪

浊度在线分析仪采用散射光式浊度测量法原理设计制作而成。当一束光束射入水样时，由于水样中浊度物质使光产生散射，通过测量与入射光垂直方向的散射光强度，并与内部标定值比对，从而计算出水样中的浊度，经过线性化处理输出最终值。

    The online turbidity analyzer is designed and manufactured by the principle of scattering light turbidity measurement. When a beam is shot into the water sample, the light is scattered by the turbidity material in the water sample. By measuring the intensity of the scattered light in the vertical direction of the incident light and comparing it with the internal calibration value, the turbidity in the water sample is calculated, and the final value is output after linearization.

MDR-3200-TS 浊度在线分析仪产品特点/Turbidity online analyzer product features：
    1、内置温度传感器，可以自动温度补偿/Built-in temperature sensor for automatic temperature compensation
    2、双盐桥、双高阻抗设计，抗干扰强，数据稳定/Double salt bridge, double high impedance design, strong anti-interference, data stability
    3、低功耗设计，抗干扰设计/Low power design, anti-interference design
    4、电极可更换，支持复杂水域应用，支持电极定制/Electrode replaceable, support complex water applications, support electrode customization
    5、3/4 “ NPT上下安装螺纹设计，便于安装/3/4 "NPT up and down mounting thread design for easy installation
    6、数字传感器，RS-485接口，Modbus/RTU协议/Digital sensor, RS-485 interface, Modbus/RTU protocol

MDR-3200-TS 浊度在线分析仪电气连接/Turbidity online analyzer electrical connection：

    线缆为4芯双绞屏蔽线，线序定义/The cable is a 4-core shielded twisted-pair cable. The sequence is defined as follows:
    1、红色线—电源线（12～24VDC）/Red Cable - Power cable (12 ~ 24VDC)
    2、黑色线—地线（GND）/Black Wire - Ground (GND)
    3、蓝色线—485A/Black Wire - Ground (GND)
    4、白色线—485B/White wire - 485B
    5、绿色线—屏蔽线/Green cable - Shielded cable
    通电前应仔细检查接线顺序，避免因接线错误而造成不必要的损失/The wiring sequence should be carefully checked before power-on to avoid unnecessary losses caused by wiring errors

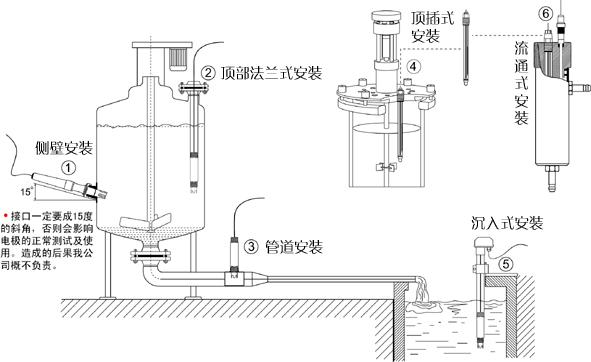

MDR-3200-TS 浊度在线分析仪安装/Turbidity nitrogen online analyzer installation：

注意：传感器安装保持至少倾斜角度30°以上；不能倒立安装。 保证传感器探头距离四周壁2cm或以上。/The sensor is installed at least 30° above the tilt Angle; Cannot be installed upside down.Ensure that the sensor probe is 2cm or more away from the surrounding wall.

MDR-3200-TS 浊度在线分析仪技术参数/Turbidity online analyzer technical parameters：
测量范围/Measuring range：0～1000NTU

测量精度/Measurement accuracy：±5%F.S

分辨率/Resolution：0.1NTU

工作条件/Working condition：0~50℃；＜0.2MPa
温度补偿/Temperature compensation：自动温度补偿（Pt100）

校准方式/Calibration mode：两点校准（Two-point calibration）

供电电压/Supply voltage：DC 12~24V

输出信号/Output signal：RS-485,MODBUS/RTU

防护等级/Class of protection：IP68

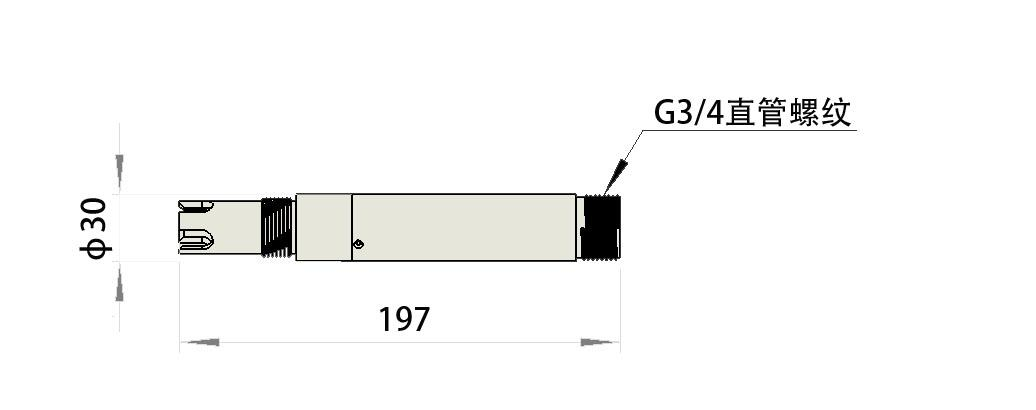

安装方式/Installation mode：3/4" NPT螺纹，浸入式安装

线缆长度/Cable length：10m，可定制

外壳材料/Housing material：POM、ABS
