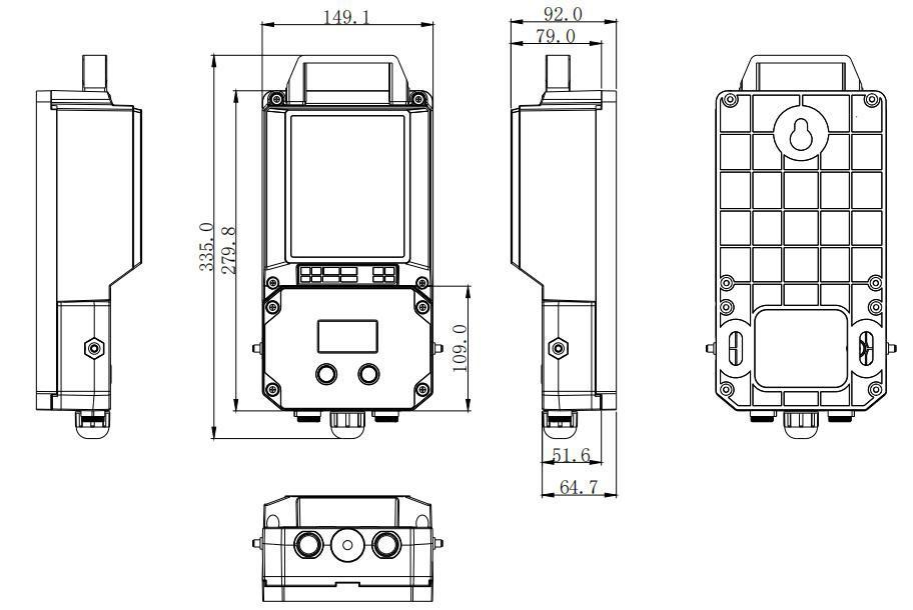

MDR-3200-TT 多功能遥测终端机

MDR-3200-TT 多功能遥测终端机具有高防护等级、低功耗、抗腐蚀能力强等特点，产品集数据采集、数据存储、供电、显示、数据传输和报警等综合功能于一体，采用 2G/3G/4G/NB-IOT/Cat1/LoRa 等无线通信功能，产品应用无需外部供电、安装便捷、免维护，支持户外 GNSS 定位。产品可应用于污水管网、雨水管网、供水管网、窨井、入河入海排口、地下水、蓄水池 的压力、水位、流量、流速和水质数据等实时采集、无线传输、现场或者远程监测和预警； 以及燃气管网、石油、化工、冶金、炼化、燃气输配等行业的监测。推进城市基础管道设 该产品是我司自主研发的高防护等级、低功耗、抗腐蚀能力强的高性能测控终端，产品 集数据采集、数据存储、供电、显示、数据传输和报警等综合功能于一体，采用 2G/3G/4G/ NB-IOT/Cat1/LoRa 等无线通信功能，产品应用无需外部供电、安装便捷、免维护，支持户外 GNSS 定位。 施信息化和智能化的转型。

    MDR-3200-TT multifunctional telemetry terminal has the characteristics of high protection level, low power consumption, strong corrosion resistance, etc. The product sets the comprehensive functions of data acquisition, data storage, power supply, display, data transmission and alarm in one, and adopts 2G/3G/4G/NB-IOT/Cat1/LoRa and other wireless communication functions. Product application no external power supply, easy installation, maintenance-free, support outdoor GNSS positioning. The product can be applied to real-time collection, wireless transmission, on-site or remote monitoring and early warning of pressure, water level, flow rate, velocity and water quality data of sewage pipe network, rainwater pipe network, water supply pipe network, manhole, river and sea outlet, groundwater and reservoir. And gas pipeline network, petroleum, chemical industry, metallurgy, refining, gas transmission and distribution and other industries monitoring. This product is a high-performance measurement and control terminal independently developed by our company with high protection level, low power consumption and strong corrosion resistance. The product integrates comprehensive functions such as data acquisition, data storage, power supply, display, data transmission and alarm, and adopts wireless communication functions such as 2G/3G/4G/ NB-IOT/Cat1/LoRa. Product application no external power supply, easy installation, maintenance-free, support outdoor GNSS positioning. Application of information and intelligent transformation.

MDR-3200-TT 多功能遥测终端机主要功能/Multifunctional telemetry terminal main functions：
    1、定时数据采集、存储及上报/Periodic data collection, storage and reporting
    2、数据超阈值，电池低电压报警功能，可按报警等级分类上报/The data exceeds the threshold, and the battery low voltage alarm function can be reported according to the alarm level

    3、支持多种通讯方式 2G/3G/4G 全网通、Cat1、NB-IOT 和 LoRa/Support a variety of communication methods 2G/3G/4G full Netcom, Cat1, NB-IOT and LoRa
    4、支持锂亚电池和可充电锂电池，锂电池支持 Type C 充电/Support lithium sub-battery and rechargeable lithium battery, lithium battery support Type C charging
    5、支持 LoRa 采集数据的方式  支持多数据中心、主备数据中心上报功能，最多4中心/LoRa data collection mode  Supports reporting from multiple DCS and active/standby DCS, with a maximum of four DCS
    6、远程查询实时数据及历史数据/Remotely query real-time and historical data
    7、支持本地LCD屏查看压力、流量、水位等监测数据/You can view monitoring data such as pressure, flow, and water level on the local LCD screen
    8、支持设备电压、环境温湿度、信号强度等工况信息监测功能/Support equipment voltage, ambient temperature and humidity, signal strength and other working condition information monitoring function
    9、本地导出历史数据  支持户外 GNSS 定位/Export historical data locally  Supports outdoor GNSS location
MDR-3200-TT 多功能遥测终端机产品特点/Multifunctional telemetry terminal product features：

    1、一体化设计：集 RTU、显示、机箱、通讯、供电系统为一体，实现的数据采集、存储、供电、显示、传输和报警等综合功能于一体/Integrated design: Set RTU, display, chassis, communication, power supply system as one, to achieve data acquisition, storage, power supply, display, transmission and alarm and other comprehensive functions in one
    2、工业级设计：宽温设计，耐高低温，耐强电磁干扰，适用于各种恶劣的现场。采用完备的系统保护机制和防掉线机制，保证终端永远在线/Industrial design: wide temperature design, high and low temperature resistance, strong electromagnetic interference resistance, suitable for all kinds of harsh site. Adopt a complete system protection mechanism and anti-drop mechanism to ensure that the terminal is always online

    3、AI功耗设计：支持多种工作模式（包括自报式、兼容式等），最大限度降低功耗/AI power consumption design: Supports a variety of working modes (including self-reporting, compatible, etc.) to minimize power consumption

    4、内置电池：超大容量，自报模式（低功耗）下 76Ah 续航时间 1.5 年，152Ah 电池续航时间 3 年（15 分钟采集，15 分钟上报，根据实际应用情况变动），锂电池版本支持定期充电/Built-in battery: large capacity, self-reporting mode (low power consumption) 76Ah battery life of 1.5 years, 152Ah battery life of 3 years (15 minutes collection, 15 minutes report, according to the actual application changes), lithium battery version support regular charging

    5、输出电源：提供可控12V@100mA 的输出电源/Output power supply: Provide controllable 12V@100mA output power supply

    6、通信方式：4G、Cat1、NB-IOT、LoRa/Communication mode: 4G, Cat1, NB-IOT, LoRa

    7、配置方式：支持小助手APP 无线配置方式/Configuration mode: Support the wireless configuration mode of the small assistant APP

    8、专业天线：窨井高增益天线、保障信号强度、突破各种阻碍/Professional antenna: high gain antenna, ensure signal strength, break through various obstacles

    9、远程管理功能：支持远程参数配置（同时支持平台配置方式和短信配置方式）、远程程序升级。提供功能强大的中心管理软件，方便设备管理，稳定可靠/Remote management function: Support remote parameter configuration (support platform configuration and SMS configuration), remote program upgrade. Provide powerful center management software, convenient equipment management, stable and reliable

    10、WDT看门狗设计，保证系统稳定/WDT watchdog design ensures system stability

    11、RS485 接口内置 15KV ESD 保护/RS485 port built-in 15KV ESD protection

    12、SIM/UIM 卡接口内置 15KV ESD 保护/SIM/UIM card port built-in 15KV ESD protection

    13、电源接口内置反相保护和过压保护/Power interface built-in inverter protection and overvoltage protection

MDR-3200-TT 多功能遥测终端机接口定义/Multifunction telemetry terminal interface definition：

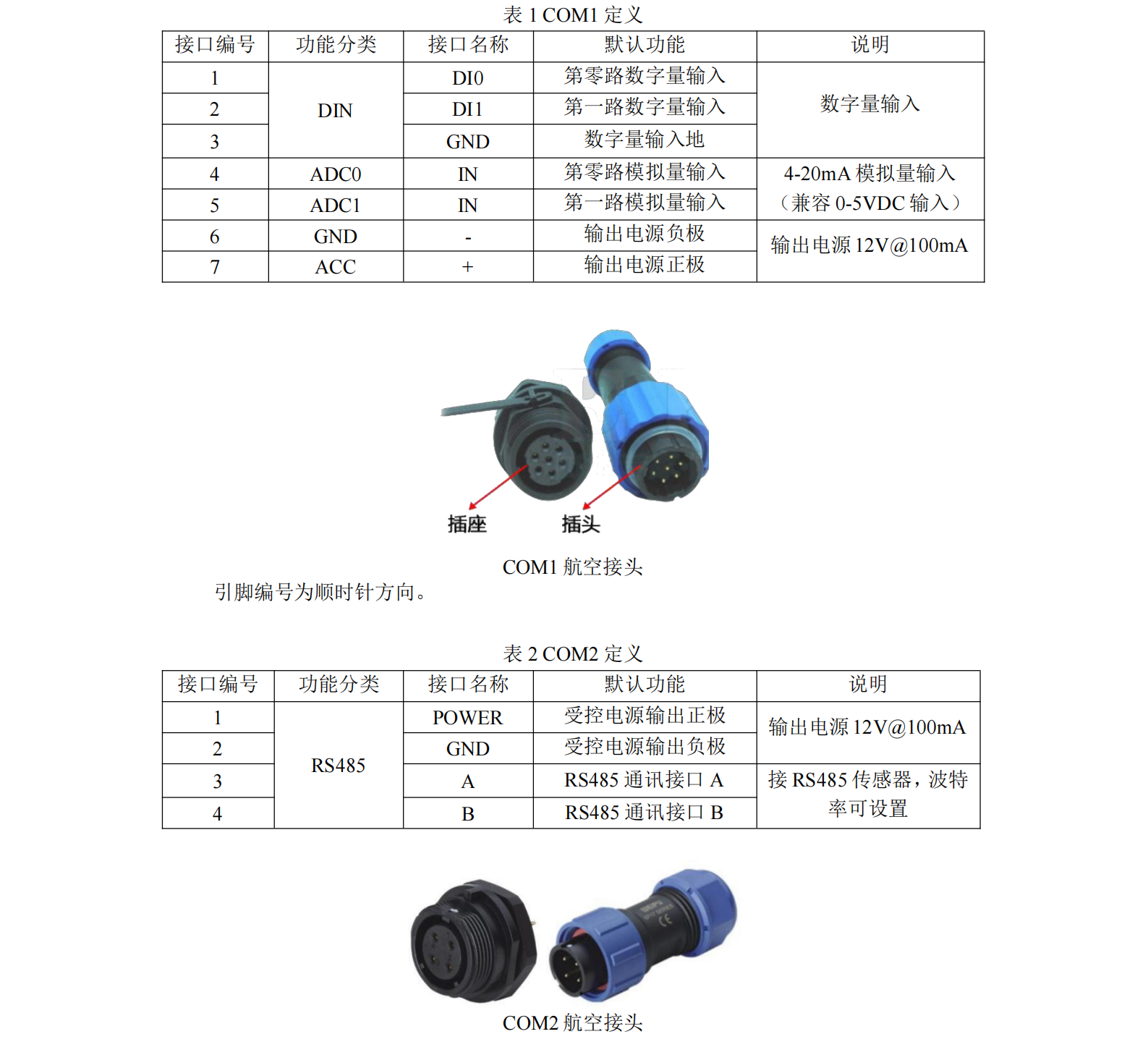

    COM1 为 2 路开关量、2 路模拟量输入和 1 路 12V@100mA 供电电源输出接口。 COM2 为 RS485 接口，支持标准的 Modbus 协议。具体接口定义请参照下表。

MDR-3200-TT 多功能遥测终端机技术参数/Multifunctional telemetry terminal technical parameters：
测速范围/Measuring range：0～10m/s

测速精度/Velocity measurement accuracy：1.0%±0.01m/s

测速分辨力/Velocity measurement resolution：0.01m/s

水位量程/Water level range：0.02~10m

水位精度/Water level accuracy：0.2%FS

流量范围/Flow range：1l/s~99999999m3/h

水温测量范围/Water temperature measuring range：0~60℃

水温精度/Water temperature accuracy：±1℃

工作电源/Working power supply：DC 8~14V

通信方式/Communication mode：RS-232/RS485(可选/optional)
