MDR-3200-PRL 平板雷达水位计

        MDR-3200-PRL 毫米波雷达是一款用于地表水液位监测的非接触式平面雷达水位计，基于精确测量的电磁波测距技术。传感器发射电磁波照射水面并接收其回波，由此获得水面至电磁波发射点的距离、距离变化率（径向速度）、方位、高度等信息。
　　设备属于测距雷达在水位测量领域的创新应用，实现了水位高精度（毫米级），体积小，量程大（30m），精度可靠，信息稳定，安装简便，免维护的技术跨越；相对于传统的喇叭式水位计具有更大功能提升。
　　主要结构包括：发射机、发射天线、接收机、接收天线、信号处理、变送单元、电源模块、数据录取设备、抗干扰等辅助设备。

        The MDR-3200-PRL  millimeter wave radar is a non-contact planar radar water level gauge for surface water level monitoring, based on electromagnetic wave ranging technology for accurate measurement. The sensor transmits electromagnetic waves to the surface of the water and receives its echo, thereby obtaining information such as the distance from the surface to the electromagnetic wave transmitting point, distance change rate (radial velocity), orientation and height.

        The equipment belongs to the innovative application of ranging radar in the field of water level measurement, achieving high water level precision (millimeter level), small volume, large range (30m), reliable accuracy, stable information, easy installation, maintenance-free technology span; Compared with the traditional horn type water level gauge, it has greater function improvement.

        The main structure includes: transmitter, transmitting antenna, receiver, receiving antenna, signal processing, transmission unit, power module, data acquisition equipment, anti-interference and other auxiliary equipment.

MDR-3200-PRL 平板雷达水位计特征说明/Flatbed radar water level gauge Feature declaration:

FMCW 调频连续波模式测距/FMCW FMCW mode ranging

精确到毫米精度的距离测量/Distance measurement accurate to millimetre accuracy

小尺寸，便于客户快捷方便安装，易拆卸/Small size, easy to install, easy to disassemble

非接触式雷达测量系统，有效减少恶劣环境的干扰，实现免维护/The non-contact radar measurement system effectively reduces the interference of harsh environments and realizes maintenance-free

外观小巧一体化设计，结构紧凑，提高设备稳定性、可靠性和精度/Compact and integrated design, compact structure, improve equipment stability, reliability and accuracy

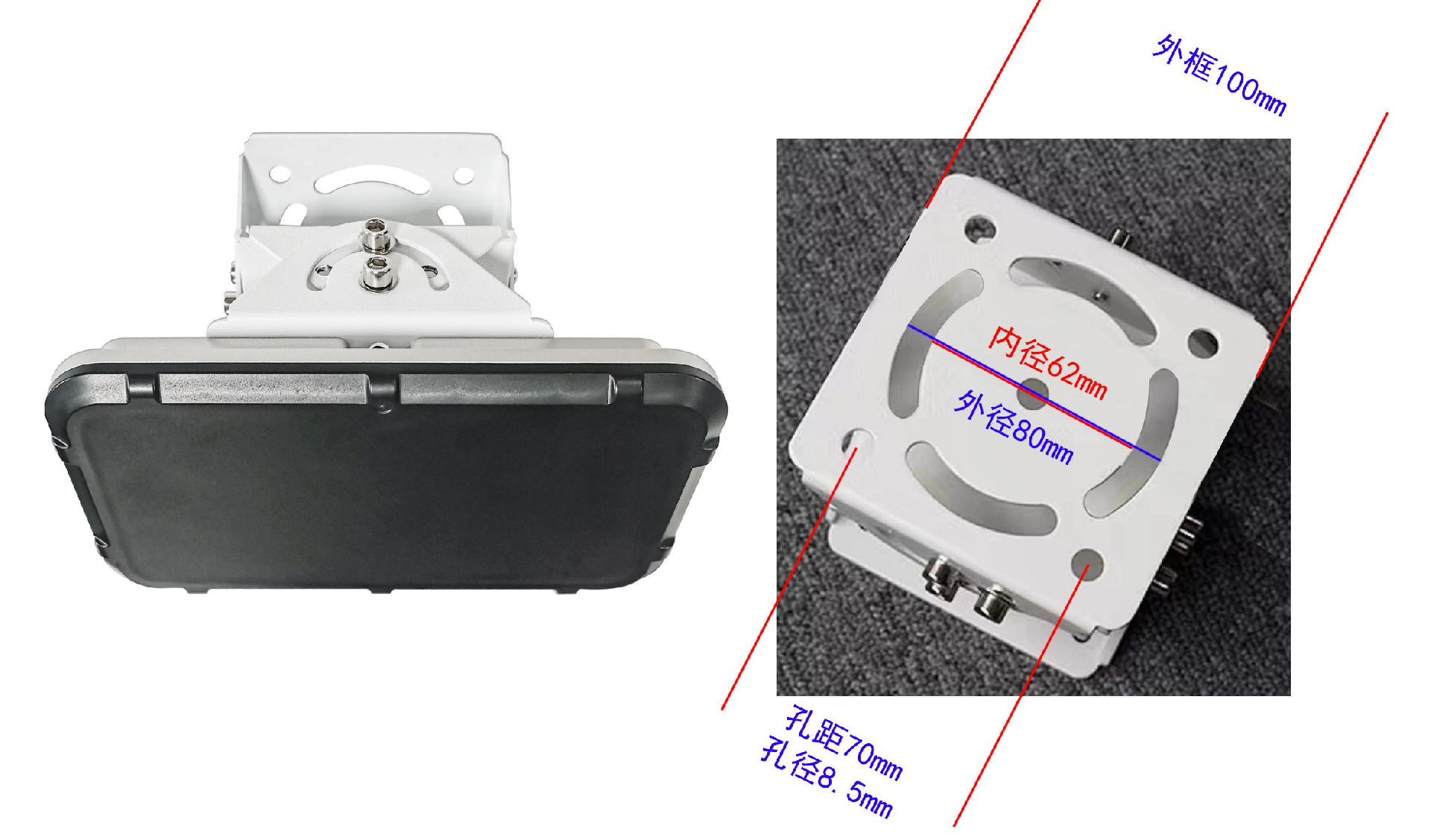

MDR-3200-PRL 平板雷达水位计安装说明/Flatbed radar water level gauge Installation instructions:

非接触式雷达产品在复杂密闭环境下电磁干扰有可能导致测量数据不准。

请正确的安装使用本产品，非正确安装方式会导致测量数据不准确。

1、产品安装后必须稳固，不会因外界因素导致晃动。

2、雷达平面与被测量水面必须保持平行。

3、严格按照使用说明选择安装点和安装高度。

（1）安装点选择

1）选择水面开阔无遮挡物、无漂浮物或其他不会影响雷达波的的位置，减少环境干扰。

2）当近水面（小于 2m）时，雷达附近建议少或者无大面积金属物体存在，减少多次反射干扰。

（2）安装高度选取

要根据场景选取合适的安装高度。安装高度选择需满足以下条件。

1) 安装高度不可小于雷达测量盲区，不可大于最大测量量程，一般以最大量程二分之一内为最佳。

2) 水位计波束范围必须全部照射于水面，严禁水位计波束范围部分或者全部照射到非水面区域。

3) 水面波浪大且杂的地方安装高度建议高于 2 米，低于最大量程三分之二。

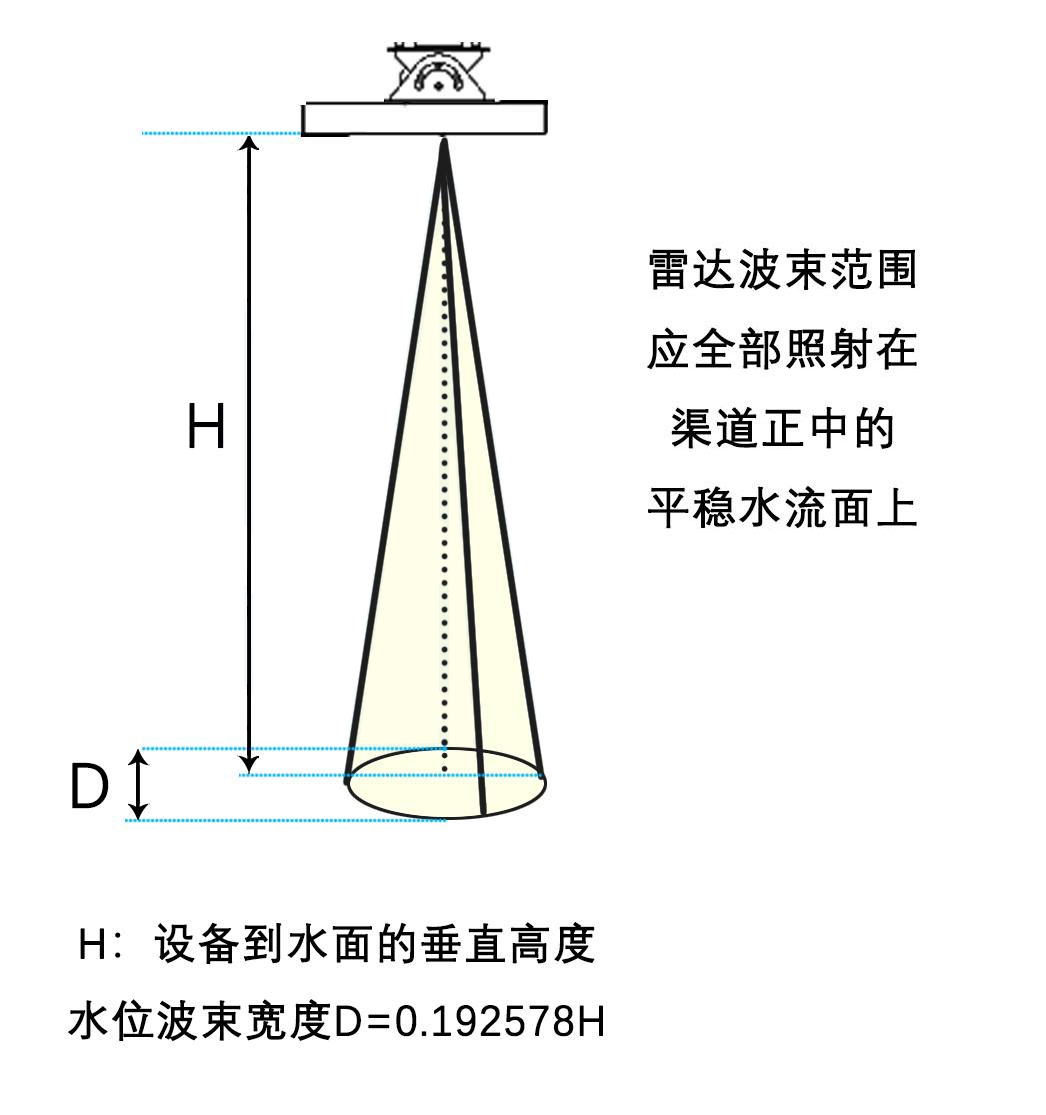

雷达照射水面区域边界与安装高度成正比，雷达照射水面波束宽度“D”与安装高度“H”之间的关系参照：

D = 2*H*tan（5.5°）= 0.192578H ≈0.2H

The electromagnetic interference of non-contact radar products in complex closed environments may lead to inaccurate measurement data.

Install and use the product correctly. Improper installation may cause inaccurate measurement data.

1、The product must be stable after installation and will not be swayed by external factors.

2、The radar plane must be parallel to the measured water surface.

3、Select the installation point and installation height in strict accordance with the instructions.

（1）Selecting an Installation Point

1) Choose a location where the water surface is open without obstructions, no floating objects or other areas that will not affect radar waves to reduce environmental interference.

2) When near the water surface (less than 2m), it is recommended that there is little or no large area of metal objects near the radar to reduce multiple reflection interference.

（2）Selecting the Installation Height

Select an appropriate installation height based on the scenario. The installation height must meet the following requirements.

1) The installation height shall not be less than the radar measurement blind area, not greater than the maximum measurement range, generally within half of the maximum range

Best.

2) The beam range of the water level meter must be fully illuminated on the water surface, and part or all of the beam range of the water level meter is strictly prohibited from being illuminated to the non-water surface area

Domain.

3) Where the water surface is large and miscellaneous, the installation height is recommended to be higher than 2 meters, less than two-thirds of the maximum range.

The boundary of the surface area of the radar irradiation is proportional to the installation height, and the beam width of the radar irradiation surface is between "D" and the installation height "H"

The relationship reference:

D = 2*H*tan (5.5°) = 0.192578H ≈0.2H

MDR-3200-PRL 平板雷达水位计优势与特点/Flatbed radar water level gauge Advantages and characteristics:

1、非接触式测量，无机械磨损/Non-contact measurement, no mechanical wear

2、体积小、重量轻、成本低、寿命长、方便安装/Small size, light weight, low cost, long life, easy to install

3、波面大、能量大、测量点多、大大提高了测量精度和可靠性/Large wave front, large energy, many measuring points, greatly improve the measurement accuracy and reliability

4、几乎不受腐蚀、泡沫、大气中水蒸气、温度和压力变化的影响/Almost unaffected by corrosion, foam, water vapor in the atmosphere, temperature and pressure changes

5、无人值守，全天候，功耗低，免维护/Unattended, all-weather, low power consumption, maintenance-free

6、信噪比高，即使在波动的情况下也能获得更优的性能/High signal-to-noise ratio enables better performance even in fluctuating conditions

7、测量范围最大可达30m，满足大部分测量环境/Measuring range up to 30m, to meet most of the measuring environment

8、发射功率低，无污染，对人体和环境无害/Low transmission power, no pollution, harmless to human body and environment

MDR-3200-PRL 平板雷达水位计技术参数/Flatbed radar water level gauge Technical parameters:

测距范围/Ranging range:0.2~30m

测量精度/Measurement accuracy:±3mm

分辨率/Resolution:1mm

发射频率/Transmission frequency:24-26GHz

输出功率/Output power:13-2020 dBm

波束宽度/Beam width:11°

启动时间/Start time:1s

工作电压/Operating voltage:9-24V

工作温度/Operating temperature:-45—+85℃

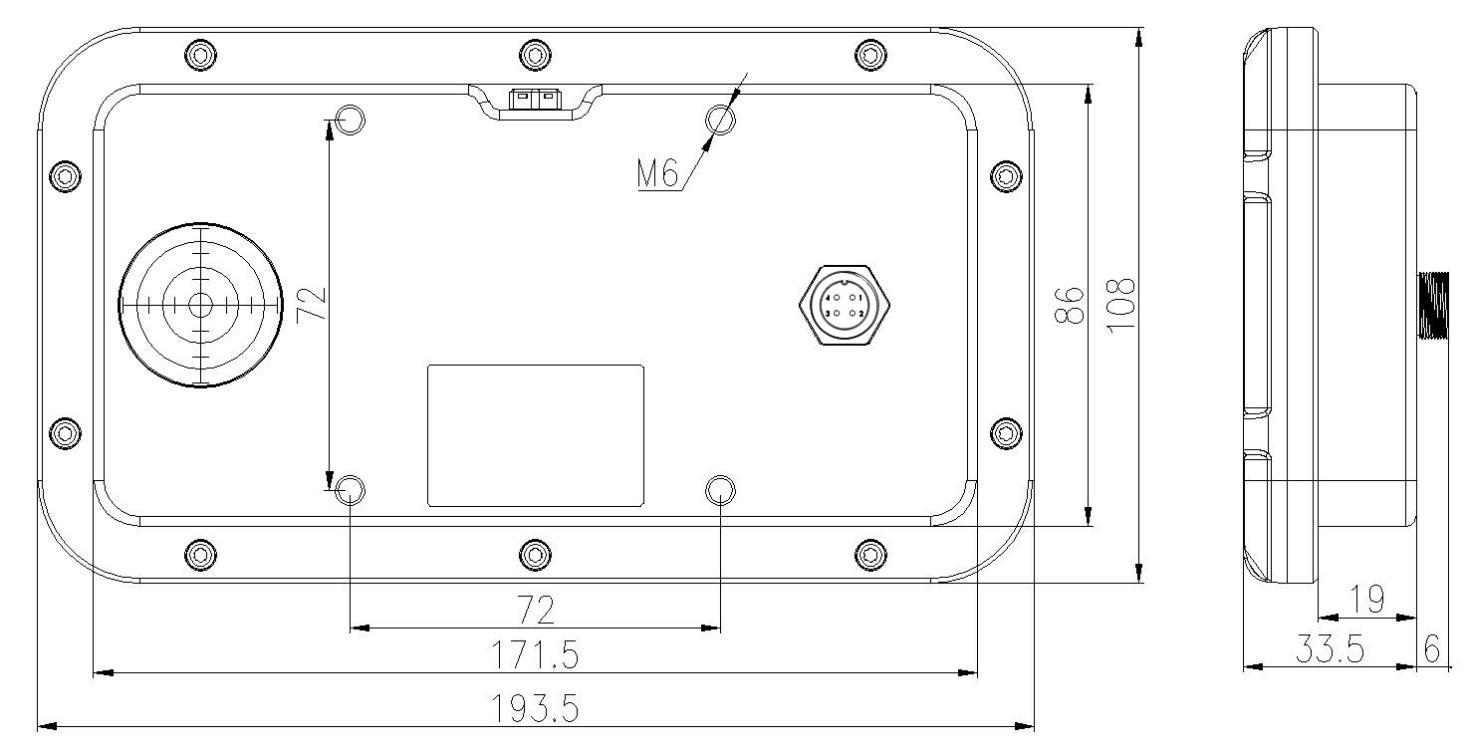

外形尺寸/Overall dimensions:194mm x 108mm x 40mm

重量/Weight:215g

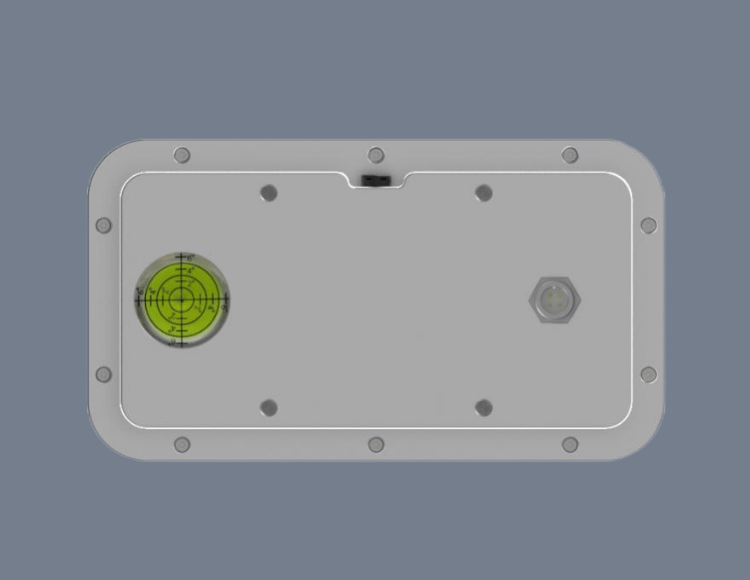

MDR-3200-PRL 平板雷达水位计产品规格/Flatbed radar water level gauge Product specification:
