MDR-RF-02 垃圾桶满溢智能监测终端

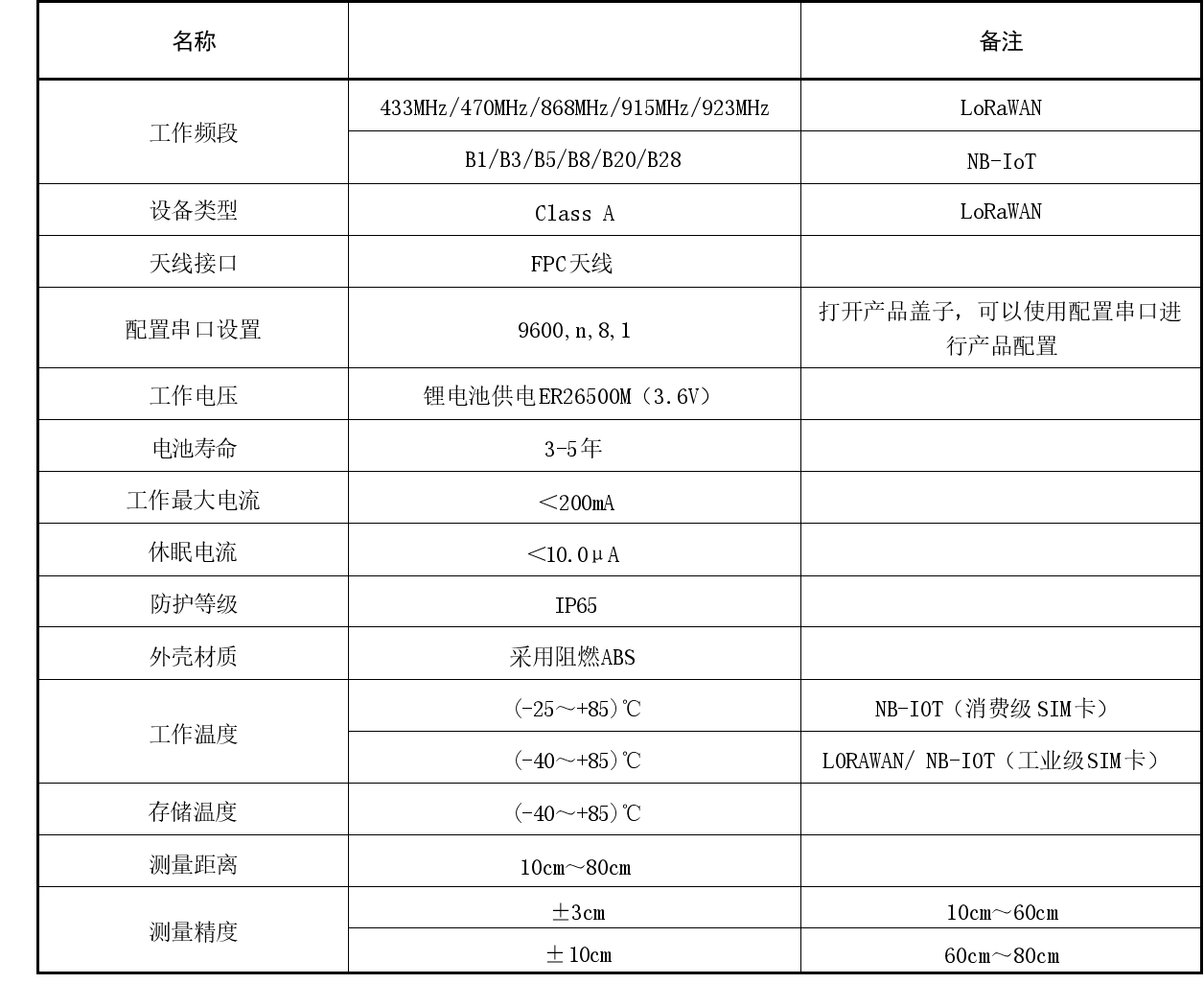

测量距离/Measuring distance:10cm~80cm
测量精度/Measurement accuracy:±3cm(10cm~60cm);±10cm(60cm~80cm)
通信方式/Communication mode:NB-IoT、LoRaWAN
工作电压/Operating voltage锂电池供电(3.6V)

电池寿命/Battery life:3~5年

工作环境/Operating tempreture:-25℃~85

外壳材质/Shell material:采用 PC+ABS 防老化、防腐蚀,可称重5吨

防护等级/IP code:IP65

应用场景/Application scenario:主要应用于各类垃圾桶桶内满溢状态的实时监测。


产品质保

品质保证

两年质保,终身维护

合作模式

合作模式

经销、代理、OEM/ODM

售后服务

售前售后

12小时内快速回应

         产品简介/Product introduction

        垃圾桶满溢监测终端安装于垃圾桶顶部,通过定时检测垃圾桶内杂物距探头表面的距离实现对垃圾桶状态的实时监测和管理。该终端产品分为单桶垃圾桶满溢监测终端和双桶垃圾桶满溢监测终端。它们都分别提供了LoRaWAN、NBIOT两种通讯方式。终端使用电池供电,具有安装方便、电池寿命长、检测准确率高,工作稳定等特点。

        The garbage can overflowing monitoring terminal is installed on the top of the garbage can, and realizes real-time monitoring and management of the garbage can status by regularly detecting the distance between the debris in the garbage can and the probe surface. The terminal product is divided into a single bucket trash can overflow monitoring terminal and a double bucket trash can overflow monitoring terminal. Both of them provide LoRaWAN and NBIOT communication methods respectively. The terminal uses battery power supply, with easy installation, long battery life, high detection accuracy, stable work and so on.

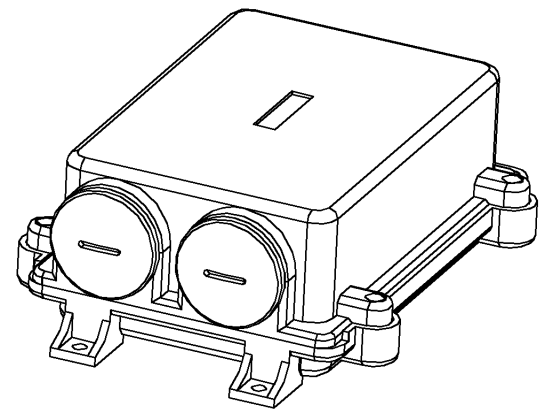

单垃圾桶满溢智能监测终端

图 单垃圾桶满溢智能监测终端

双垃圾桶满溢智能监测终端

图 双垃圾桶满溢智能监测终端

        工作原理/Working principle

        垃圾桶满溢监测终端安装在垃圾桶顶部,终端通过红外传感器测量垃圾桶内杂物距离终端的距离进行判断。当该距离小于设定的报警值时触发报警,并通过无线网络将报警信息发送至监控中心。终端支持设置定时上报时间间隔、报警时间间隔和报警深度阈值。当垃圾桶垃圾深度没有达到报警值时,终端以定时时间间隔发送上报报文;当垃圾桶垃圾深度达到报警值时,终端会立即上报告警报文。

        The garbage can overflowing monitoring terminal is installed on the top of the garbage can. The terminal determines the distance between the debris in the garbage can and the terminal by measuring the infrared sensor. When the distance is less than the set alarm value, the alarm is triggered, and the alarm information is sent to the monitoring center through the wireless network. The terminal supports setting the periodic reporting interval, alarm interval, and alarm depth threshold. When the garbage depth of the trash can does not reach the alarm value, the terminal sends a report message at a regular interval. When the garbage depth reaches the alarm value, the terminal immediately reports an alarm message.


无线垃圾桶满溢智能监测终端

单通垃圾桶满溢智能监测终端的产品外形和尺寸如图:
单桶垃圾桶满溢智能监测终端外形尺寸图

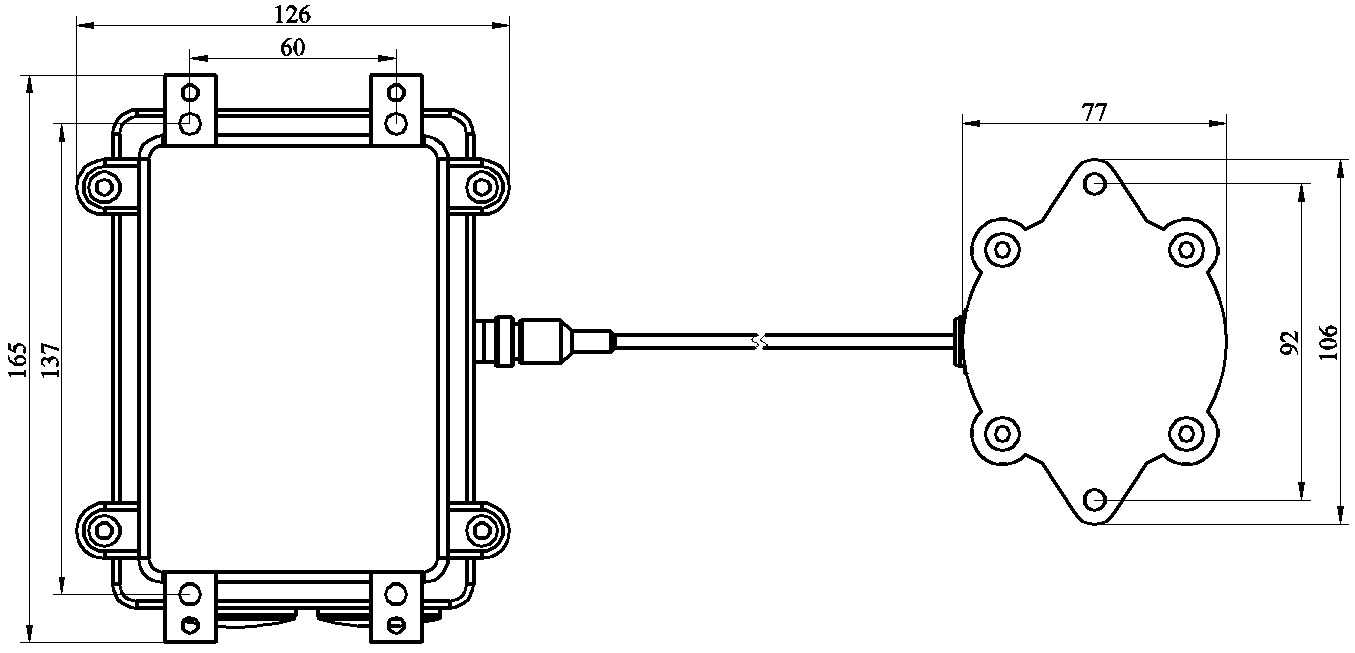

通垃圾桶满溢智能监测终端的产品外形和尺寸如图:
双桶垃圾桶满溢智能监测终端外形尺寸图
