MDR-WD-05 无线水浸智能监测终端

        产品简介/Product introduction

         无线水浸智能监测终端用于监测是否有水浸入，当有水浸入时会触发终端报警，报警信号通过无线传输方式发送至监控中心，监控中心对数据进行解析并判断警情。该终端产品提供LoRaWAN、NBIOT、GPRS三种无线通讯方式，可应用于路基浸水、机房浸水、桥下积水等应用场合的监测。终端产品使用电池供电，具有安装方便、电池寿命长、检测准确率高，工作稳定等特点。

          The wireless flood intelligent monitoring terminal is used to monitor whether there is water immersion. When there is water immersion, the terminal alarm will be triggered, and the alarm signal will be sent to the monitoring center through wireless transmission. The monitoring center will analyze the data and judge the alarm. The terminal product provides LoRaWAN, NBIOT, GPRS three wireless communication modes, which can be used in the monitoring of roadbed flooding, computer room flooding, water under Bridges and other applications. The terminal products use battery power supply, with easy installation, long battery life, high detection accuracy, stable work and so on.

        工作原理/Working principle

        无线水浸智能监测终端采用漏水探测电极进行水浸探测，当探头的两个电极被水浸入时，触发终端报警并通过无线网络将报警信息发送至监控中心。

        The wireless intelligent monitoring terminal uses the water leakage detection electrode for water leakage detection. When the two electrodes of the probe are immersed in water, the terminal alarm is triggered and the alarm information is sent to the monitoring center through the wireless network.

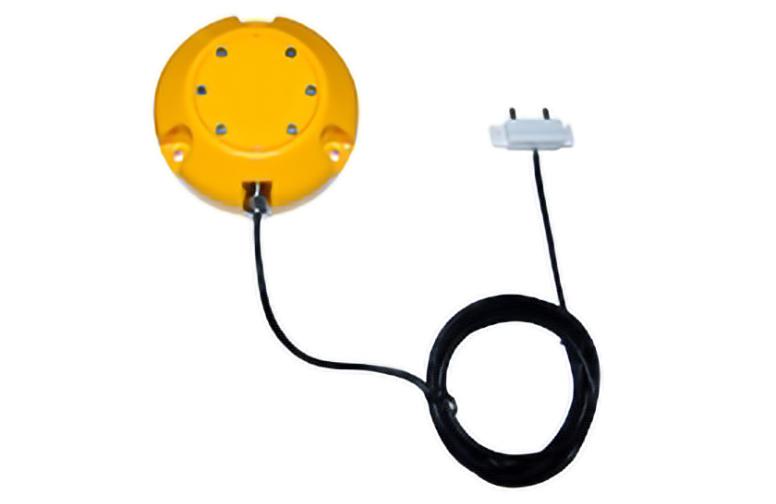

无线水浸智能监测终端的外形及尺寸标注如下图所示：
