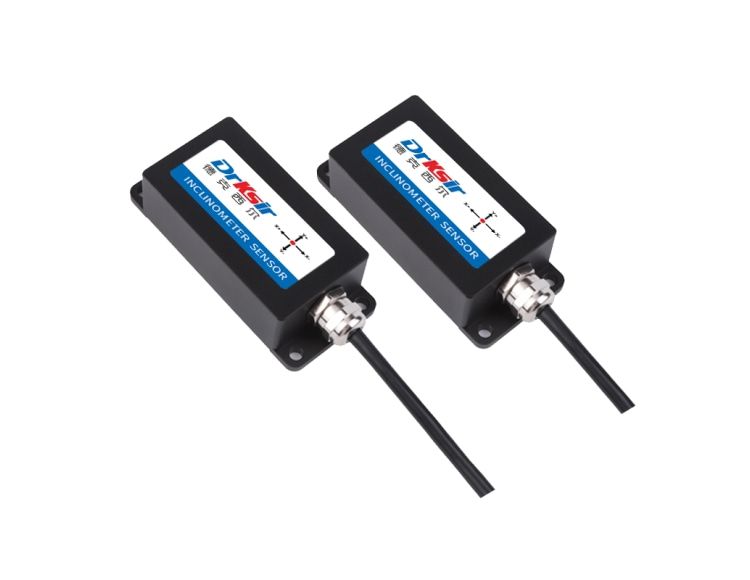

MDR-3616T 抗震型单轴倾角开关

         MDR-3616T是一款抗震型单轴倾角开关，在传统的倾角传感器的基础增加一组三轴陀螺仪，通过滤波融合算法修正、补偿因震动产生的倾角误差；使得产品更加适用于机械抖动领域；当传感器倾斜角度大于预设的报警阈值时，继电器闭合或断开，起到开关的作用。在使用时只需要把对应的线色接在电源或控制设备上即可。

        MDR-3616T is a seismic single-axis inclination switch, which adds a set of three-axis gyroscopes on the basis of traditional inclination sensors, and amends and compensates the inclination errors caused by vibration by filtering fusion algorithm. Make the product more suitable for the field of mechanical shaking; When the sensor tilt Angle is greater than the preset alarm threshold, the relay is closed or disconnected and plays the role of a switch. In use, it is only necessary to connect the corresponding line color to the power supply or control device.

应用场景/Application scenario

• 塔杆、风力发电设备/Tower and wind power generation equipment


• 桥梁健康监测/Bridge health monitoring


• 云台调平、高空作业车/PTZ leveling, aerial work vehicle


• 边坡等地质灾害领域/Slope and other geological hazard fields


• 危房、古建筑/Dangerous houses and ancient buildings


• 高支模、基坑监测/Monitoring of high formwork and foundation pit


• 医疗设备/Medical equipment


• 高精度激光平台/High precision laser platform


• 各种工程机械角度控制/Angle control of various construction machinery


主要特性/Main characteristics

• 单轴倾角检测 /Uniaxial inclination detection

• 0~±90°量程（可选）/0~± 90 ° range (optional)


• 0.1°精度级，分辨率0.01° /0.1 ° accuracy level, resolution 0.01 °

• DC9~36V供电 /DC9~36V power supply


• 继电器输出 /Relay output

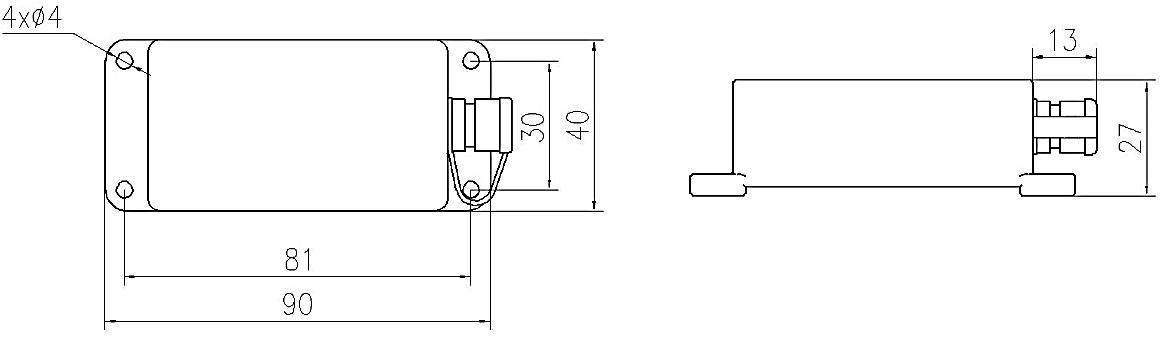

• (L90*W40*H27mm) 尺寸（可定制）/  (L90*W40*H27mm) size (customizable)

• 默认IP67防水等级 /Default IP67 waterproof grade


• -40～+85℃宽温工作 /-40~+85 ℃ wide temperature operation


• 5-100Hz输出频率（可选） /5-100Hz output frequency (optional)

• >20000g高抗震性 /  >20000g high seismic resistance

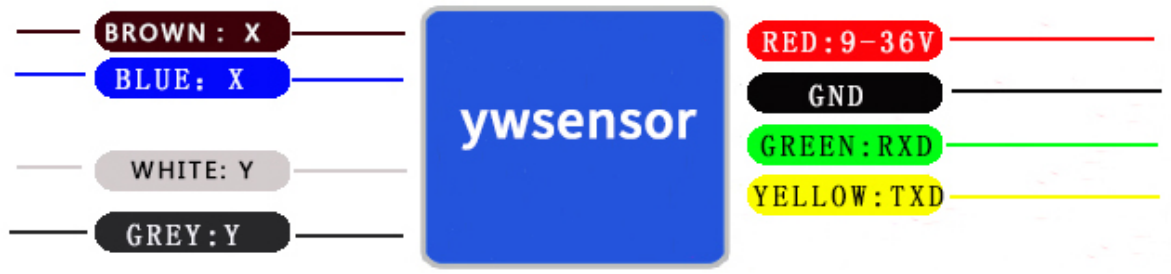

电气连接/Electrical connection

产品名称/Product Name：抗震型单轴倾角开关/Seismic single-axis tilt switch

精度/precision：0.1°（可定制0.01°/0.005°）

选择几轴/Select several axes.：X轴或Y轴/X axis or Y axis

工作电压/Operating voltage：DC9~36V

平均工作时间/Average working time：≥55000小时/次（≥55000 hours/time）

防护等级/Class of protection：IP67或IP68
输出信号/Output signal：继电器输出（常开或常闭可选）/Relay output (normally open or normally closed optional)

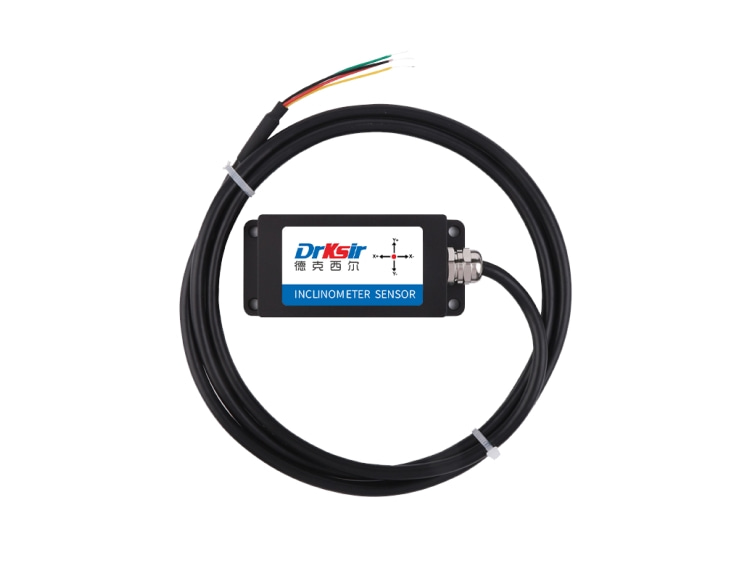

电缆/cable：标配 1.5 米长度、耐磨、防油、宽温、屏蔽电缆线6*0.2/Standard 1.5m length, wear-resistant, oil-proof, wide temperature, shielded cable 6*0.2

测量方式/Measurement method：常规测量/Routine measurement

安装方式/Installation method：水平安装（默认）或竖直安装可选/Horizontal installation (default) or vertical installation optional
