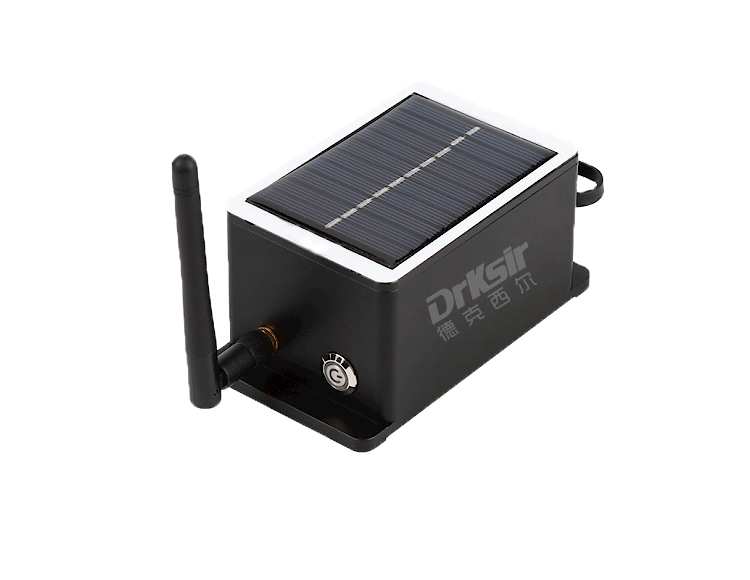

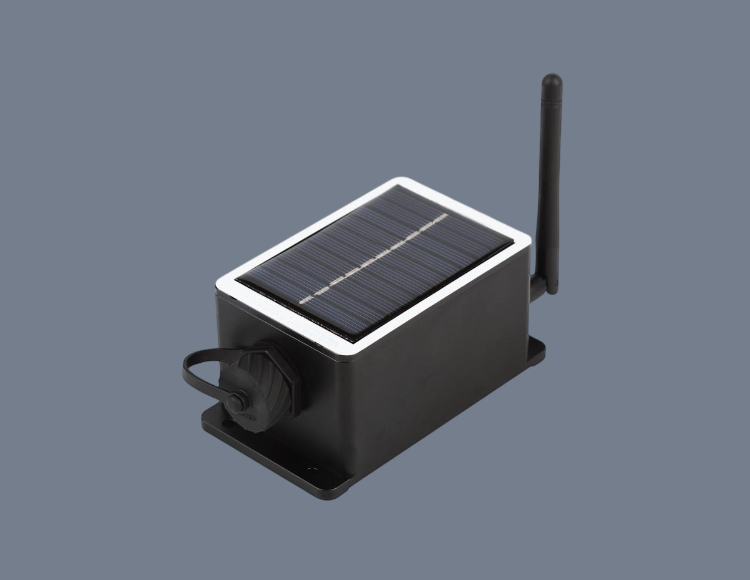

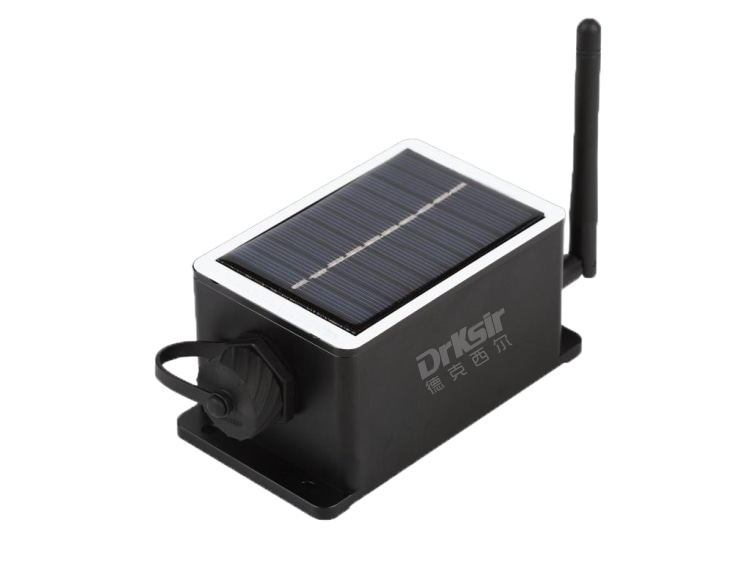

MDR-3620T 无线倾角传感器

       MDR-3620T型是一款低功耗低成本无线倾角计；内置可充电锂电池(容量9000mA.H)，在不更换电池的情况下，工作时长可达5年以上（每天采集一次数据）；产品配置太阳能电池板进行充电，同时支持外部充电器快速充电。默认LORA 传输。核心元件采用MMES-3D 测斜单元，滤波融合算法保证产品的测量精度和一致性；适合在野外自然环境中长期温定工作。产品支持远程控制与管理，可以自动进入低功耗休眠模式，休眠电流低于4.8μA；支持定时唤醒和运动唤醒功能；星型网络组网，数据可经LoRa 网关进入云端。设计精密、体积小、功耗低，可广泛应用在建筑结构监测、自动化等领域。

        MDR-3620T is a low-power and low-cost wireless inclinometer; Built-in rechargeable lithium battery (capacity 9000mA.H), without replacing the battery, the working time can reach more than 5 years (data is collected once a day); The product is equipped with solar panels for charging, while supporting fast charging with an external charger. Default LORA transport. The core component adopts MMES-3D inclinometry unit, and the filter fusion algorithm ensures the measurement accuracy and consistency of the product; Suitable for long-term temperature work in the field natural environment. The product supports remote control and management, can automatically enter low-power sleep mode, sleep current is less than 4.8μA, supports timing wake-up and motion wake-up function, star network networking, data can enter the cloud through the LoRa gateway. With precise design, small size and low power consumption, it can be widely used in building structure monitoring, automation and other fields.

应用场景/Application scenario

• 塔杆、风力发电设备/Tower and wind power generation equipment


• 桥梁健康监测/Bridge health monitoring


• 云台调平、高空作业车/PTZ leveling, aerial work vehicle


• 边坡等地质灾害领域/Slope and other geological hazard fields


• 危房、古建筑/Dangerous houses and ancient buildings


• 高支模、基坑监测/Monitoring of high formwork and foundation pit


• 医疗设备/Medical equipment


• 高精度激光平台/High precision laser platform


• 各种工程机械角度控制/Angle control of various construction machinery


主要特性/Main characteristics

• 双轴倾角检测 /Dual-axis inclination detection


• 0~±90°量程（可选）/0~± 90 ° range (optional)


• 0.01°精度级，分辨率0.001° / 0.01 ° accuracy level, 0.001 ° resolution

• LoRa无线通信 /LoRa wireless communication

• DC5V供电 /DC5Vpower supply

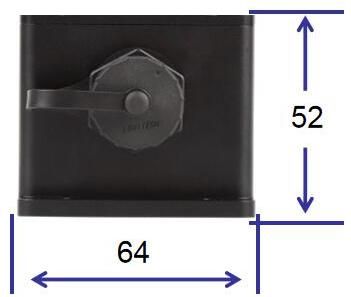

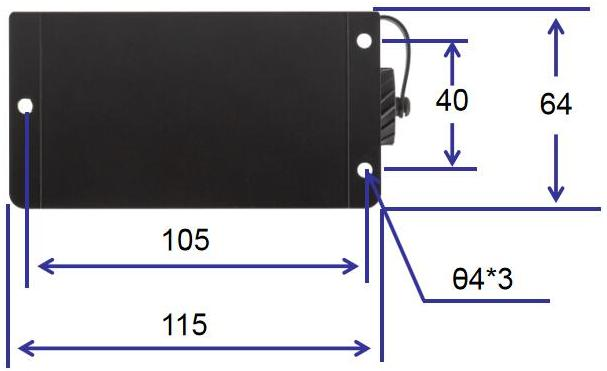

• (L115*W64*H52mm) 尺寸（可定制）/  (L115 * W64 * H52mm) size (customizable)

• 默认IP67防水等级 /Default IP67 waterproof grade


• -40～+85℃宽温工作 /-40~+85 ℃ wide temperature operation
