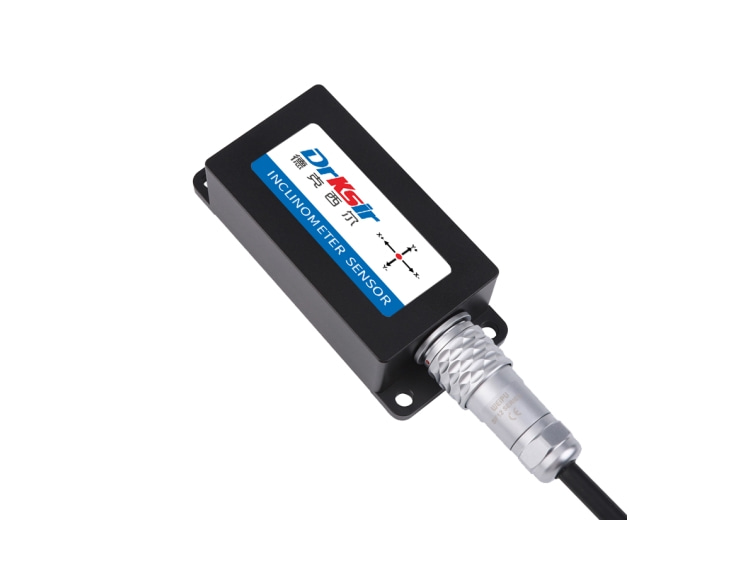

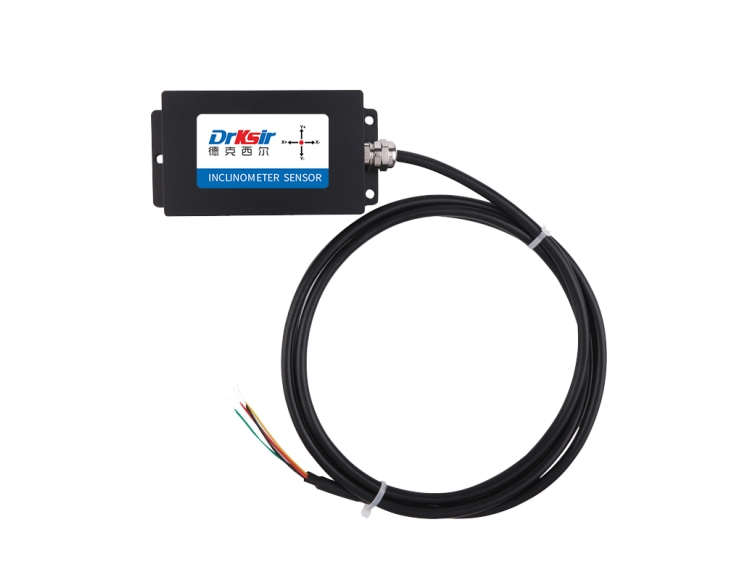

MDR-3629T-M Modbus双轴倾角传感器

       MDR-3629T-M是一款高精度双轴倾角传感器，是目前行业内精度较高的产品。浪涌〈冲击〉抗扰度达到 IEC 61000-4-5 IV 级的采用 MEMS 技术、数字输出的双轴高精度倾角传感器，测量范围±90°，最高精度达 0.001°；传感器内部采用高分辨力差分数模转换器，内置自动补偿和滤波算法，很大程度减小了环境变化引起的误差。把静态重力场的变化转换成倾角变化，通过数字方式直接输出当前的横滚角和俯仰角， 产品安装方便、使用简单、体积小、抗外界电磁干扰、承受振动冲击能力强，是工业自动化、 测量测绘等行业。
       MDR-3629T-M is a high-precision dual-axis inclination sensor, which is the product with high accuracy in the industry at present. A dual-axis high-precision tilt sensor with MEMS technology and digital output, with a surge (impact) immunity of IEC 61000-4-5 class IV, with a measuring range of ± 90 ° and a maximum accuracy of 0.001 °; The sensor uses a high resolution differential fractional to analog converter and built-in automatic compensation and filtering algorithm, which greatly reduces the error caused by environmental changes. Convert the change of static gravity field into the change of inclination angle, and directly output the current roll angle and pitch angle through digital mode. The product is easy to install, simple to use, small in size, resistant to external electromagnetic interference, and strong in bearing vibration and impact. It is an industry of industrial automation, surveying and mapping.
      MDR-3629T-M型MODBUS 双轴倾角传感器产品测量准确、性能稳定；独特的为应用在工业领域设计的抗电磁干扰电路，保证产品能够在恶劣工业环境中长期稳定工作。产品使用简单、设计紧凑、预留多种接口，适合集成到系统里；在安全监测预警、自动化调平等多个领域得到广泛应用。
      MDR-3629T-M MODBUS dual-axis inclination sensor has accurate measurement and stable performance; The unique anti-electromagnetic interference circuit designed for application in the industrial field ensures that the product can work stably in the harsh industrial environment for a long time. The product is simple to use, compact in design, reserved with multiple interfaces, and suitable for integration into the system; It has been widely used in many fields, such as safety monitoring and early warning and automatic adjustment.

应用场景/Application scenario

• 塔杆、风力发电设备/Tower and wind power generation equipment


• 桥梁健康监测/Bridge health monitoring


• 云台调平、高空作业车/PTZ leveling, aerial work vehicle


• 边坡等地质灾害领域/Slope and other geological hazard fields


• 危房、古建筑/Dangerous houses and ancient buildings


• 高支模、基坑监测/Monitoring of high formwork and foundation pit


• 医疗设备/Medical equipment


• 高精度激光平台/High precision laser platform


• 各种工程机械角度控制/Angle control of various construction machinery


主要特性/Main characteristics

• 双轴倾角检测 /Dual-axis inclination detection


• 0~±90°量程（可选）/0~± 90 ° range (optional)


• 0.001°精度级，分辨率0.0001° /0.001 ° accuracy level, resolution 0.0001 °


• MODBUS RTU通信协议 /MODBUS RTU communication protocol

• 485通信硬件 /485 communication hardware


• DC5V或9~36V供电 /DC5V or 9~36V power supply


• 2400~115200（可选）波特率/2400~115200 (optional) baud rate


• (L90*W40*H27mm) 尺寸（可定制）/  (L90*W40*H27mm) size (customizable)

• 默认IP67防水等级 /Default IP67 waterproof grade


• -40～+85℃宽温工作 /-40~+85 ℃ wide temperature operation


• 5-100Hz输出频率（可选） /5-100Hz output frequency (optional)

• >20000g高抗震性 /  >20000g high seismic resistance

产品名称/Product Name：Modbus双轴倾角传感器/Biaxial inclination sensor

精度/precision：0.001°（可定制0.1°/0.01°/0.005°）
通讯协议/Protocol：Modbus
输出方式/Output mode：MODBUS

选择几轴/Select several axes.：双轴/Biax

测量方式/Measurement method：常规测量/Routine measurement

安装方式/Installation method：水平安装（默认）或竖直安装可选/Horizontal installation (default) or vertical installation optional
